Neodymium Block Magnet – 30.2mm X 22mm X 19.1mm With Cut-Out Channel 7.3mm | N38

Magnetic Product Description:

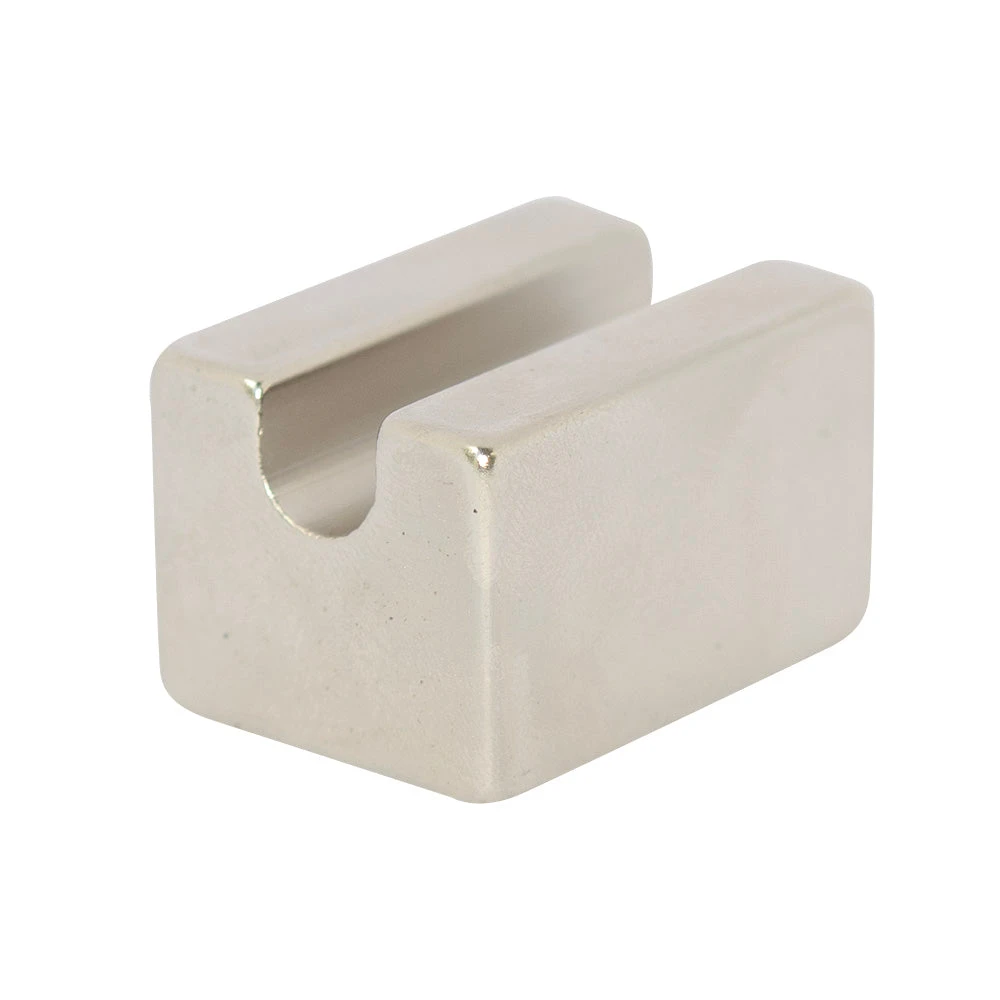

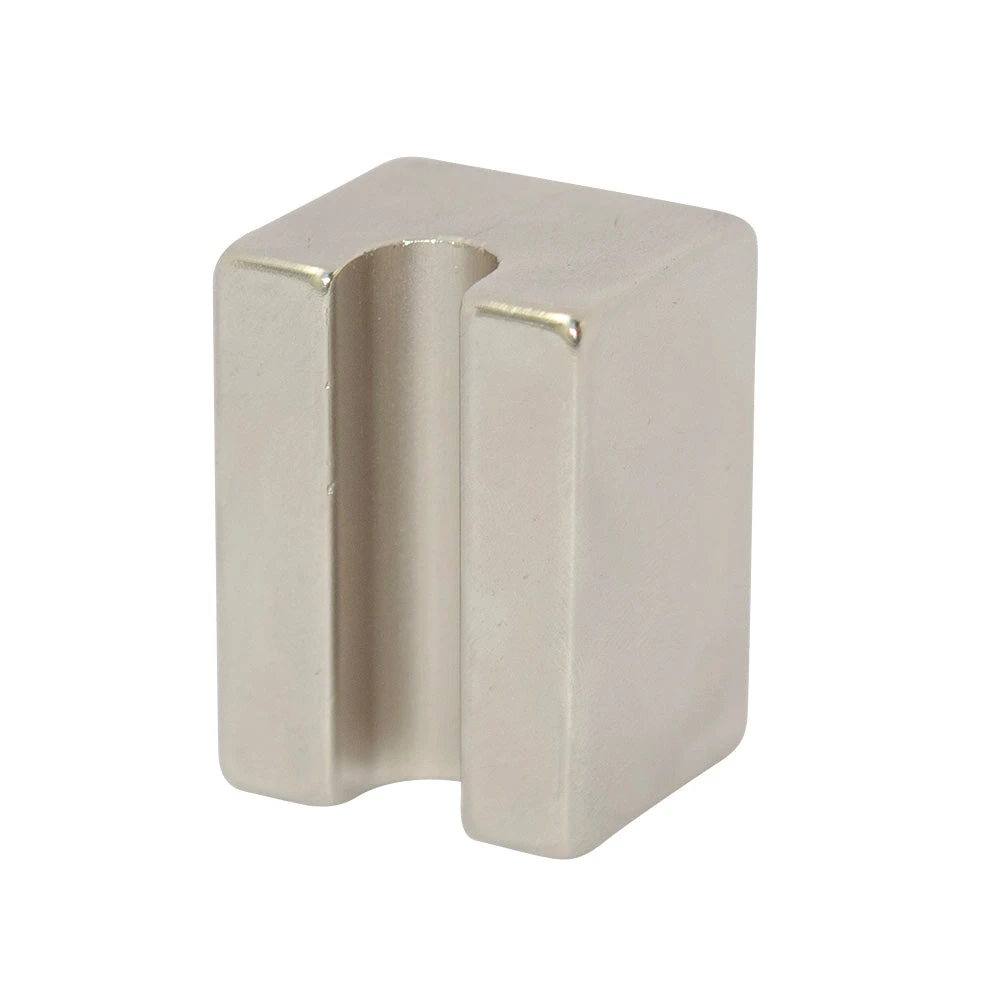

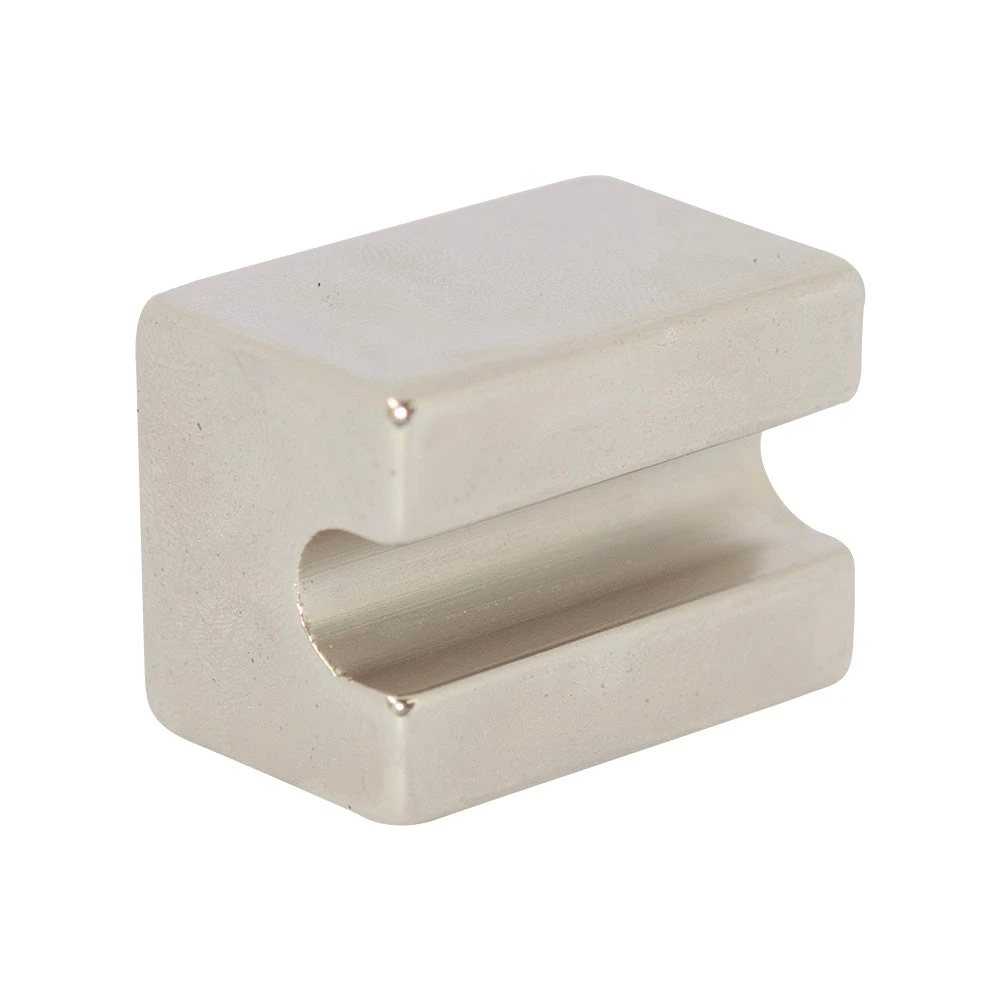

This rectangular block magnet has a length of 30.2mm, a width of 22mm, and a height (or thickness) of 19.1mm. It has a cut-out channel which is 7.3mm in diameter. This magnet has a Gauss reading of 11,300 and a pull force of 21.31 kilograms. This product is identified by the AMF Magnetics part number 93488.

Uses for our Rare Earth Block Magnet with Channel:

This Neodymium block magnet is a custom design that AMF created for a major civil engineering company.

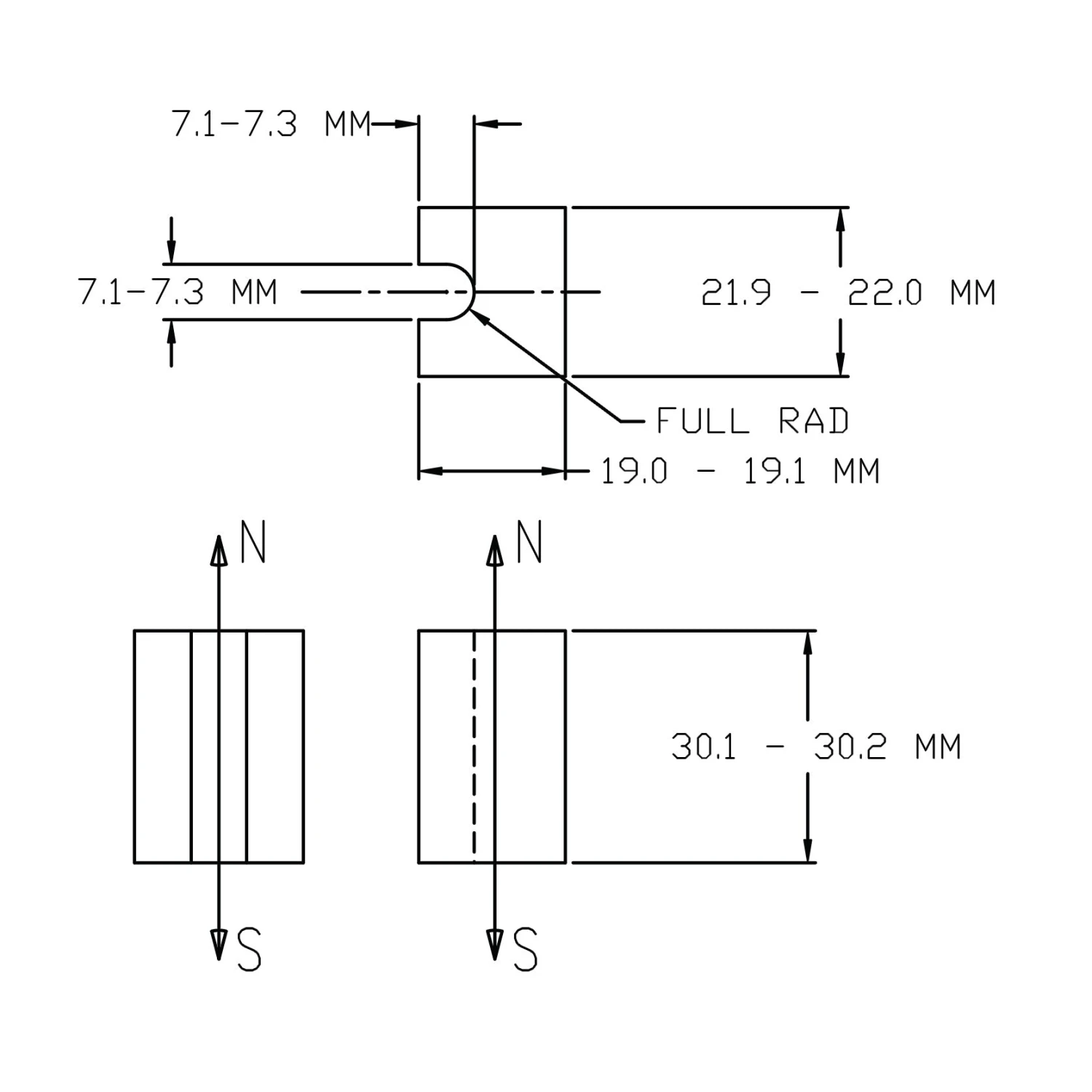

Unlike the majority of block magnets, this item has an unusual direction of magnetisation. The North and South poles are located at each end of the cut-out channel as depicted in the adjacent diagram. The magnetic field travels through the 30.2mm length dimension.

Magnets like this are designed for a particular application and are usually needed to solve a problematic design issue or to improve general efficiency in a processing system. The cut-out channel can be useful for either securing the magnet in a particular position or allowing limited lateral movement of the magnet when positioned correctly. In other applications, the magnet may be used as a detection sensor to activate important processes or to automatically trigger failsafe systems when a production problem arises.

This item has an incredible 11000 gaus magnetic output that generates 21.31kg pull force against thick steel.
