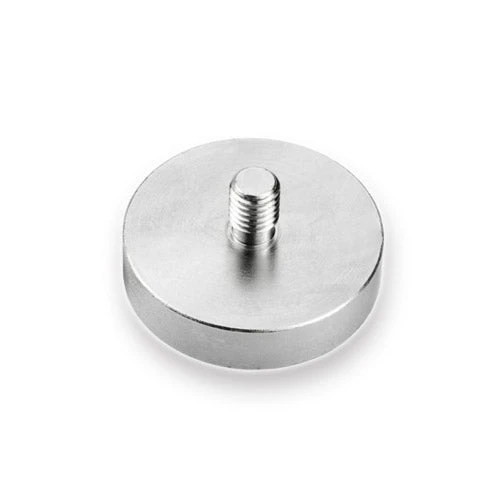

Male Thread Neodymium Pot Magnet – Diameter 42mm X 20mm | M6 Thread

Magnetic Product Description:

This Rare Earth male threaded pot magnet has a diameter of 42mm, a total height of 20mm and a magnet housing thickness of 9mm. It has a M6 thread with an external boss of 11mm, the M6 thread’s pitch is 1mm. This male threaded magnet has a pull force of 68kg and a weight of 84 grams. It is identified by the AMF Magnetics part number AMFYPC42.

Uses for our Rare Earth Male Thread Pot Magnets:

This Male Thread Holding Pot magnet has a strong 68 kg holding capacity and is suitable for industrial applications. The projecting male threaded boss allows for simple attachment to non-ferrous materials using a washer and nut. Likewise, it can be incorporated as a component part into bespoke designs that are created for the customer’s particular application. The Neodymium magnet is protected by a mild steel cup which enhances the magnetic field at the working face of the magnet by projecting both poles through the operational side of the magnet. This increases the pull-force beyond the strength that a stand alone disc magnet would be capable of.

Product Code	DØ (mm)	M (mm)	H (mm)	h (mm)	Thread Pitch (mm)	Holding force (kg)	Weight (g)
AMFYPC10	10	3	12	5	0.5	2.2	3.5
AMFYPC12	12	3	13	5	0.5	3.2	5
AMFYPC16	16	4	13	5	0.7	5.5	7.5
AMFYPC20	20	4	15	7	0.7	9	16
AMFYPC25	25	5	17	8	0.8	22	30
AMFYPC32	32	6	18	8	1	34	45
AMFYPC36	36	6	18	8	1	41	57
AMFYPC42	42	6	20	9	1	68	84
AMFYPC42/8	42	8	20	9	1.25	68	84
AMFYPC48	48	8	24	11.5	1.25	81	130
AMFYPC60	60	8	30	15	1.25	113	254
AMFYPC75	75	10	34	15	1.50	164	550
