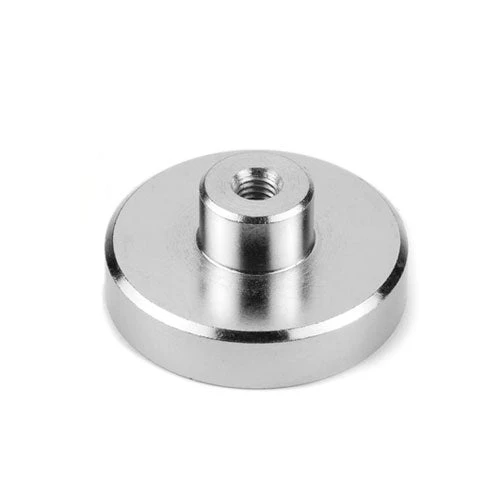

Female Thread Neodymium Pot Magnet – Diameter 36mm X 18mm

Magnetic Product Description:

This rare earth female threaded pot magnet has a diameter of 36mm, a total height of 18mm and a magnet housing thickness of 8mm. It has a 6mm female thread with an external boss of 10mm. This female threaded magnet has a pull force of 41kg and a weight of 59 grams. It is identified by the AMF magnet part number AMFYPD36.

Uses for our rare earth female thread pot magnets:

Any material can become magnetically bonded to steel by attaching a Pot magnet. There are various methods for attaching Pot magnets, but these Neodymium Pot magnets have a Female Thread that allows them to be secured to your non-metallic item with a bolt. The steel capping makes the uncapped side more powerful and also protects the magnet from damage. Alternatively, a threaded rod or bar can be inserted to attach or display advertising material or signage and then attached to metallic surfaces like machinery, fencing or vehicles. A thin piece of cloth or similar between the magnet and a metal surface will protect painted surfaces from damage and make the magnetised item easier to remove and reattach in another location. Combined with a rope and an eyelet or hook attachment, Female Thread Pot magnets can be used to recover lost or dislodged metal items from difficult to access places.



ModelNo.	DØ	D1Ø	M	H	h	Holding force(kg)	Weight (g)
AMFYPD10	10	5.5	3	12	5	2.2	3.5
AMFYPD12	12	6	3	13	5	3.2	5
AMFYPD16	16	6	4	13	5	5.5	8
AMFYPD20	20	8	4	15	7	9	17
AMFYPD25	25	10	5	17	8	22	32
AMFYPD32	32	10	6	18	8	34	47
AMFYPD36	36	10	6	18	8	41	59
AMFYPD42	42	10	6	20	9	68	87
AMFYPD48	48	12	8	24	11.5	81	132
AMFYPD60	60	14	8	30	15	113	270
AMFYPD75	75	16	10	34	18	164	552
