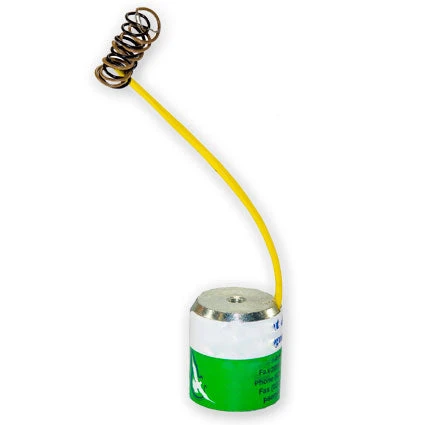

12V DC 35mm Heavy Duty Electromagnet with 20kg Holding Capacity

Reliable Magnetic Force for Precision Control

Achieve powerful, switchable magnetic force with our 35mm Electromagnet. Designed for high-performance industrial and automation applications, this 12V DC unit provides the reliable holding power needed to manage mechanical components with ease. Whether you are building automated sorting systems or specialized filtration equipment, this electromagnet offers the perfect balance of strength and duty-cycle flexibility to solve your lifting and holding challenges.

Why You’ll Love This

• High Holding Capacity: Features a robust 20kg breakaway capacity, ensuring secure handling of ferromagnetic materials and components.
• Dynamic Voltage Range: Optimized for 12V DC continuous operation, with the ability to handle up to 24V intermittently for increased force requirements.
• Precision Engineering: Built with a high-quality ferromagnetic core and dense copper coils to ensure a stable and consistent magnetic field.
• Versatile Duty Cycle: Supports continuous use at 200mA or intermittent high-power operation (up to 10 minutes at 50% duty cycle) for demanding tasks.
• Multi-Industry Utility: Ideal for metal detection, automated sorting, water treatment systems, and CNC machinery.

Product Details

• Diameter: 35mm
• Operating Voltage: 12 Volts DC (Rated)
• Maximum Holding Force: 20kg (Breakaway Cap)
• Current Draw (Continuous): Approximately 200 mA
• Intermittent Specs: Up to 24V DC / 400 mA (Max 10 mins at 50% duty cycle)
• Power Type: Direct Current (DC)
